Grate Magnet
GTEK Grate Magnets
Introduction

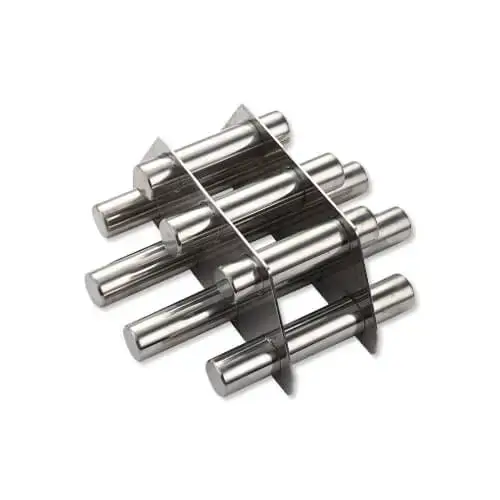

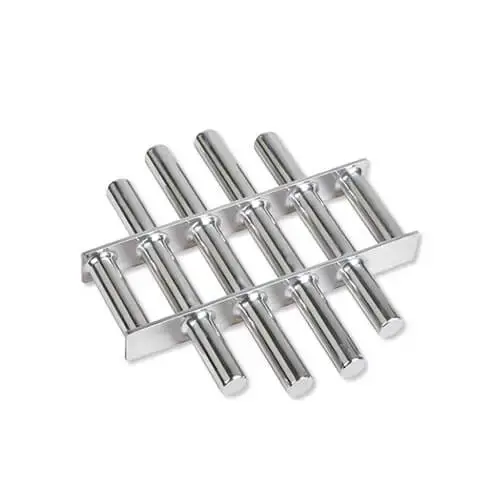

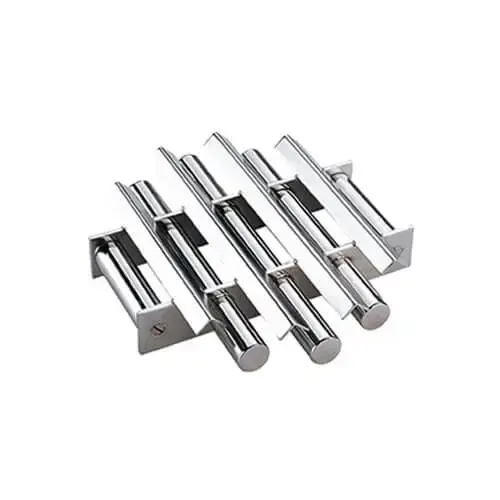

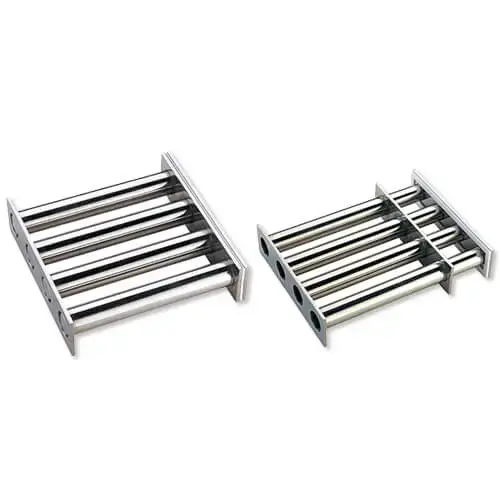

Grate Magnets or Magnetic Grids, are a simple magnetic system with a powerful magnetic field, consisting of a single (mostly) or multi layers of magnetic bars, normally installed or just simply placed in the storage, drawer box, hopper and other places where there is limited installation height.
Grate Magnets can capture ferroumagnetic impurities from the free flow or liquid product line, they are commenly used in chemical, ceramic, bulk flour or other powder & grains handling industries. They also suitable for removing the tiny iron impurities in liquid and semi-liquid products.
Features

Common Magnetic Grids
Square | Dimension (mm) | Tubes | Weight (kg) | ||
---|---|---|---|---|---|
Length | Width | Height | |||
GM-10S | 100 | 100 | 40 | 2 | 1 |
GM-15S | 150 | 150 | 3 | 2.2 | |
GM-20S | 200 | 200 | 4 | 3.7 | |
GM-25S | 250 | 250 | 5 | 5.5 | |
GM-30S | 300 | 300 | 6 | 8 | |
GM-35S | 350 | 350 | 7 | 10 | |
GM-40S | 400 | 400 | 8 | 13.5 | |
GM-45S | 450 | 450 | 9 | 17 | |
GM-50S | 500 | 500 | 10 | 20.5 | |
Round | Diameter | Height | Tubes | Weight (kg) | |
GM-100R | 100 | 40 | 2 | 0.9 | |
GM-150R | 150 | 3 | 1.5 | ||
GM-200R | 200 | 4 | 2.5 | ||
GM-250R | 250 | 5 | 3.7 | ||
GM-300R | 300 | 6 | 5.5 | ||
GM-350R | 350 | 7 | 7.5 | ||
GM-400R | 400 | 8 | 10 | ||
GM-450R | 450 | 9 | 12.3 | ||
GM-500R | 500 | 10 | 15.5 |






More Knowledge About Magnetic Grids
